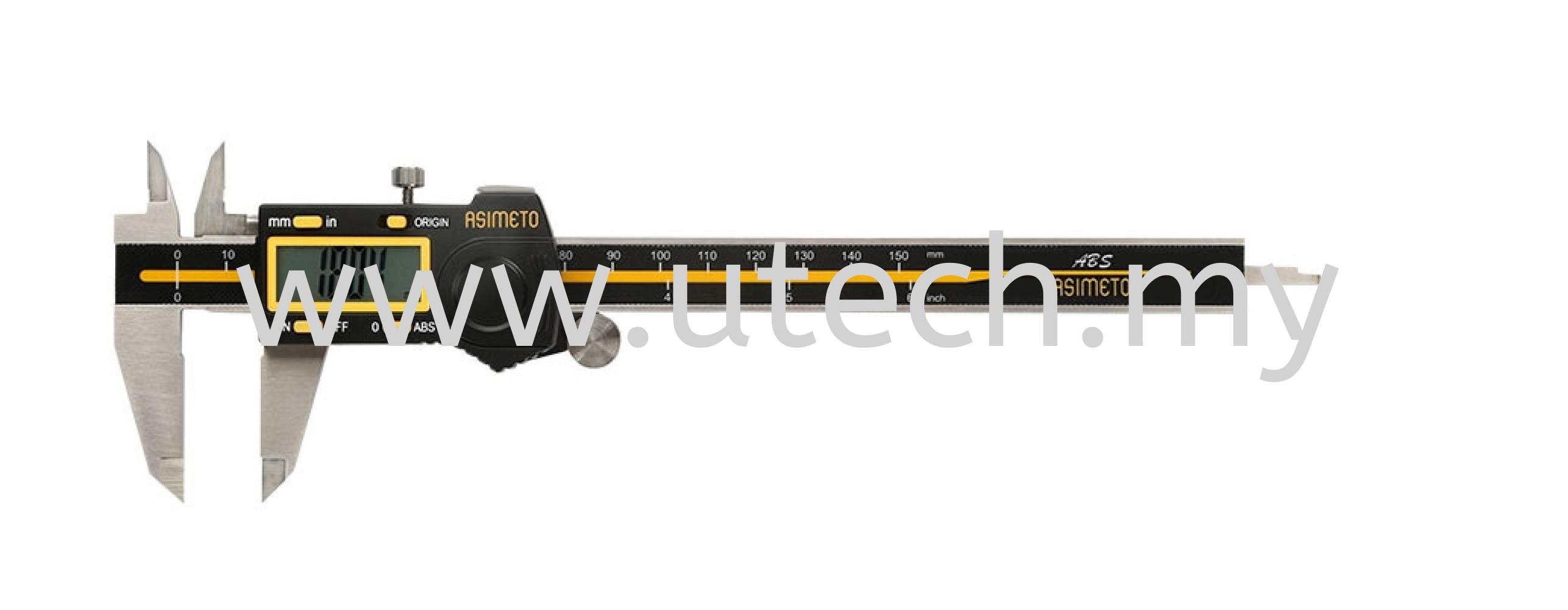

Absolute Digital Calipers
Series 307

FEATURES

• Resolution: .0005'' / 0.01mm
• The caliper will be ready for measurements as soon as it is switched on with the LCD screen displaying the actual slider position. There is no need to set the zero position each time the caliper is used as the origin setting is retained even when the caliper is switched off
• Absolute system delivers reliable measurement
• Inch/Metric conversion
• A thumb wheel is provided for easy use
• Cable data output: 900-05-4/5
• Wireless data output:
  Transmitter: 901-00-4/6
  Receiver: 901-00-3


STANDARD ACCESSORIES

• Battery
• Warranty card, Calibration certificate, Instruction manual

With Thumb Wheel
Range	Accuracy	Code No.
0-150mm / 0-6''	± 0.03mm	307-56-3
0-200mm / 0-8''	± 0.03mm	307-58-3
0-300mm / 0-12''	± 0.03mm	307-62-3
W/O Thumb Wheel
Range	Accuracy	Code No.
0-150mm / 0-6''	± 0.03mm	307-56-3
0-200mm / 0-8''	± 0.03mm	307-58-3
0-300mm / 0-12''	± 0.03mm	307-62-3
