Magnetic Bases

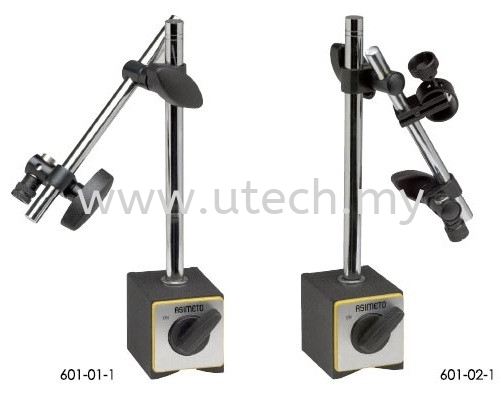

Series 601

FEATURES

• Accepts test indicators with dovetail clamping mechanism
• Dial gauges can be held by the 3/8” or 8mm diameter stem or by the lug backing plate
• The rotary knob switches natural magnet On or Off
• The precision surfaces and the bottom V are securely fastened to the ferrous work piece or machine table when the rotary knob is in the on position
• #601-02-0/1 with Fine Adjustment



Magnetic Power	Base	Main Stem (D1)	Main Stem (L1)	Sub Pole (D2)	Sub Pole (L2)	Dia. of Hole	Notes	Code No.
80 kgf	60x50x55mm	Φ12mm	176mm	Φ10mm	165mm	Φ8mm		601-01-0
80 kgf	60x50x55mm	Φ12mm	176mm	Φ10mm	150mm	Φ8mm	With a fine adjustment	601-02-0
100 kgf	73x50x55mm	Φ12mm	176mm	Φ10mm	165mm	Φ8mm	Metal switch	601-03-0
