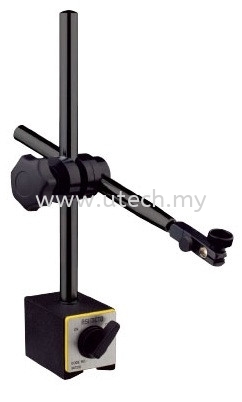

Forced Locking Magnetic Bases
Series 604

FEATURES

• Accepts test indicators with dovetail clamping mechanism
• Dial gauges can be held by the 3/8” or 8mm diameter stem or by the lug backing plate
• New design, Holding more solid and reliable, more stable performance, higher accuracy
• The rotary knob switches natural magnet on or off
• The precision surfaces and the bottom V are securely fastened to the ferrous workpiece or machine table when the rotary knob is in the on position



Magnetic Power	Base	Main Stem (D1)	Main Stem (L1)	Sub Pole (D2)	Sub Pole (L2)	Dia. of hole	Slot	Code No.
80 kgf	60x50x55mm	Φ12mm	180mm	Φ10mm	205mm	Φ3/8” / Φ8mm	6.5mm	604-01-0
80 kgf	60x50x55mm	Φ14mm	205mm	Φ12mm	210mm	Φ3/8” / Φ8mm	6.5mm	604-02-0
100 kgf	73x50x55mm	Φ16mm	250mm	Φ16mm	245mm	Φ3/8” / Φ8mm	6.5mm	604-03-0
100 kgf	117x50x55mm	Φ18mm	350mm	Φ16mm	245mm	Φ3/8” / Φ8mm	6.5mm	604-04-0
