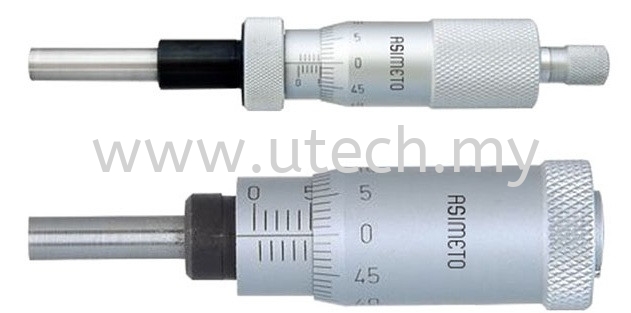

Micrometer Heads
Series 169

Mechanical Models
Range	Accuracy	Graduation	Spindle Dia.	Spindle Lock	Measuring Face	Clamp Nut	Code No.
0-25mm	0.004mm	0.01mm	Φ6.5mm	W/O	Carbide & Flat	W/O	169-11-2
0-25mm	0.004mm	0.01mm	Φ6.5mm	W/O	Carbide & Spherical	W/O	169-11-0
0-25mm	0.004mm	0.01mm	Φ6.5mm	W/O	Carbide & Flat	With	169-01-2
0-25mm	0.004mm	0.01mm	Φ6.5mm	W/O	Carbide & Spherical	With	169-01-0
0-25mm	0.004mm	0.01mm	Φ6.5mm	With	Carbide & Flat	W/O	169-41-0
0-25mm	0.004mm	0.01mm	Φ6.5mm	With	Carbide & Spherical	W/O	169-41-2
0-25mm	0.004mm	0.01mm	Φ6.5mm	With	Carbide & Flat	With	169-42-0
0-25mm	0.004mm	0.01mm	Φ6.5mm	With	Carbide & Spherical	With	169-42-2
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	W/O	169-51-0
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	W/O	169-52-0
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	W/O	169-53-0
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	W/O	169-54-0
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	W/O	169-51-2
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	W/O	169-52-2
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	W/O	169-53-2
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	W/O	169-54-2
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	With	169-51-4
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	With	169-52-4
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	With	169-53-4
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	With	169-54-4
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	With	169-51-76
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	With	169-52-6
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	With	169-53-6
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	With	169-54-6
