Details

---

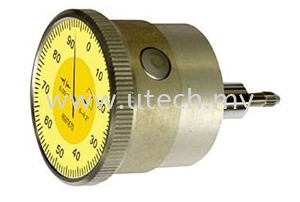

Back Plunger Type Dial Indicators
Series 422

FEATURES

• Graduation: .001'' / 0.01mm
• Easy to read dial face with dial revolution counter
• Back plunger type dial indicators are designed to be used in fixtures and other applications that the dial reading is best viewed from an axis parallel to that of the indicator measuring axis

STANDARD ACCESSORIES

• Warranty card, Calibration certificate

Mechanical Models
Range	Grad.	Accuracy	Range / Rev.	Dial Dia.	Stem Dia.	Dial Reading	Code No.
1mm	0.01mm	0.015mm	1mm	58mm	Ø8mm	0-100	422-11-2
3mm	0.01mm	0.015mm	1mm	58mm	Ø8mm	0-100	422-12-2
5mm	0.01mm	0.02mm	1mm	58mm	Ø8mm	0-100	422-13-2
