Details

---

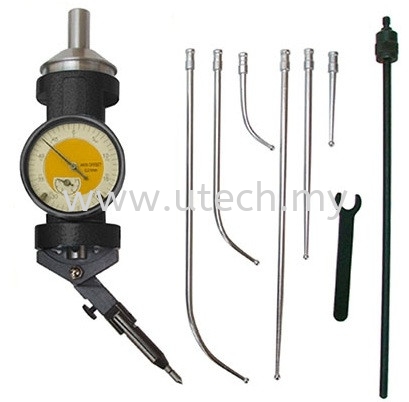

Centering Indicators
Series 469

FEATURES

• Graduation: .0005'' / 0.01mm
• Provides a simpified method of centering a work piece or fixture on horizontal for vertical machines, internal or external diameters.  Face of indicator remains stationary in any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table.
• Shank Dia.: ø3/8'' / ø10mm
• Operating speed not to exceed 800 RPM
• Range: Internal (5/32'' - 12'' / 4 - 300mm) / External (Up to 12'' / 300mm)

STANDARD ACCESSORIES

• 6pcs Feeler Set, Center Locating Feeler
• Warranty card, Instruction manual



Mechanical Models
Dial Reading	Accuracy	Code No.
0.01mm	0.005mm	469-00-6
Accessory
Description	Length	Capacity	Code No.
6 pcs Feeler Set			469-01-1
ID Feeler	2''/50mm	4''/100mm	469-01-2
ID Feeler	4''/100mm	8''/200mm	469-01-3
ID Feeler	6''/150mm	12''/300mm	469-01-4
OD Feeler	2''/50mm	4''/100mm	469-01-5
OD Feeler	4''/100mm	8''/200mm	469-01-6
OD Feeler	6''/150mm	12''/300mm	469-01-7
Center Locating Feeler	-	-	469-01-8
Feeling Rod	-	-	469-01-9
