Details

---

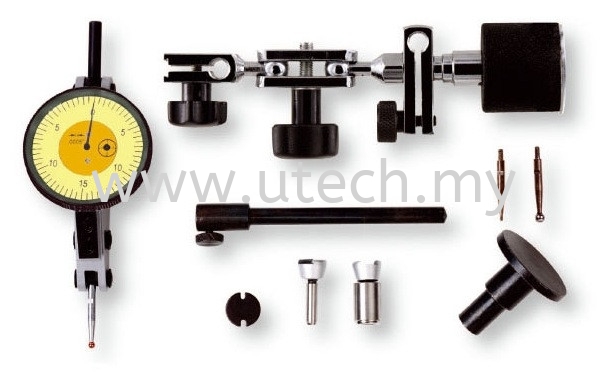

Extended Range Dial Test Indicator Sets #2
Series 503 / 504

FEATURES

• Doubles the range of most of indictors
• Jeweled movement and easy to read dial
• Supplied with Xtra-Mag magnetic base
• Range: 0- .060''
• Graduation: .0005''
• Dial Reading 0-15-0
• Dial Dia.: 1-5/16”
• 5⁄32'' Stem, dovetail on front and back

STANDARD ACCESSORIES

• Xtra-Mag magnetic base with 2 universal ball sockets
• Micro-fine adjustment screw
• 3-9/16” extension arm
• Two dovetail Stems: 3⁄8'' & 5⁄32''
• Three contact points: .04'' (hardened steel), .08'', .12'' (Tungsten Carbide) x 5⁄8'' long
• Wrench
• Warranty card, Calibration certificate, Instruction manual

Sets
Range	Grad.	Dial Dia.	Accuracy	Indicator Code No.	Code No.
1.6mm	0.01mm	38mm	0.02mm	504-56-0	504-82-0
