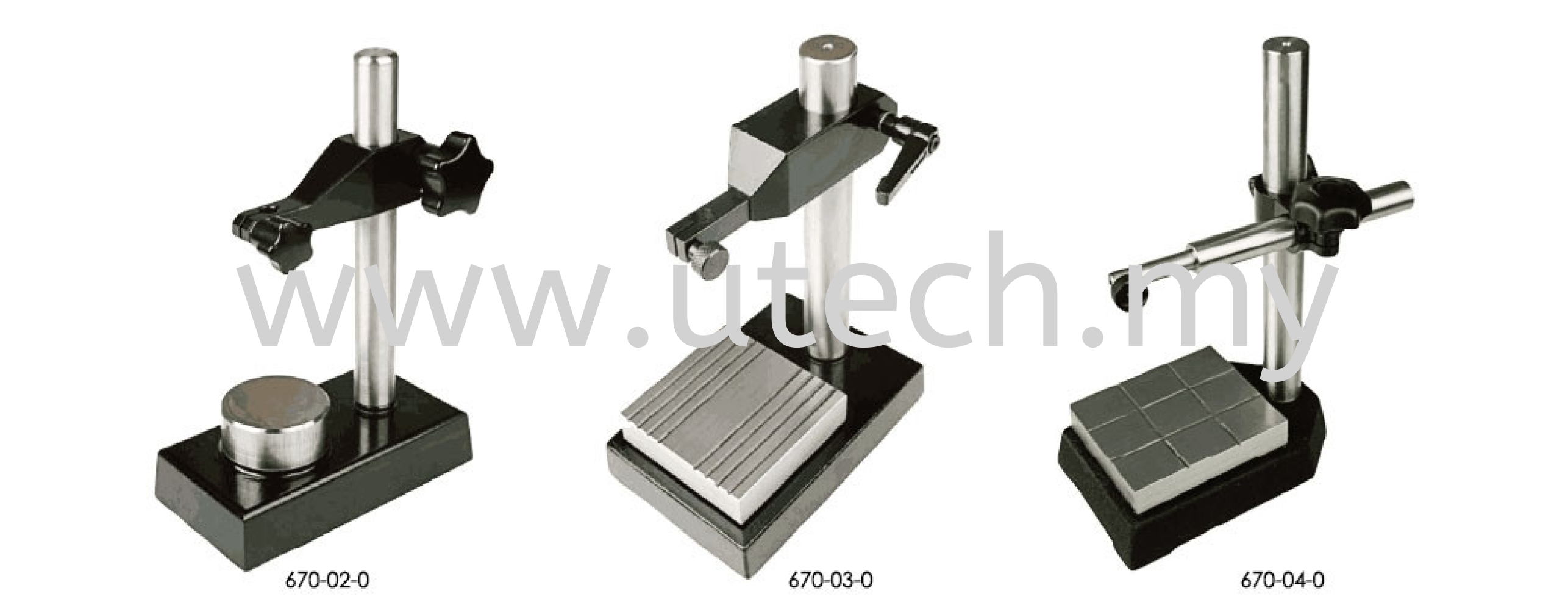

Dial Gauge Stands
Series 670

FEATURES

• Both column and metal stage are hardened and precision lapped
• With Ø8mm H7 clamping hole

Size	Flatness	Pillar	Verticality	Measuring Range	Code No.
Ø50mm	0.002mm	170 x Ø20mm	0.03mm	100mm	670-02-0
80 x 80mm	0.002mm	180 x Ø25mm	0.03mm	100mm	670-03-0
115 x 97mm	0.002mm	Primary: Ø27.5 x 260mm Secondary: Ø20 x 150mm	0.03mm	200mm	670-04-0
