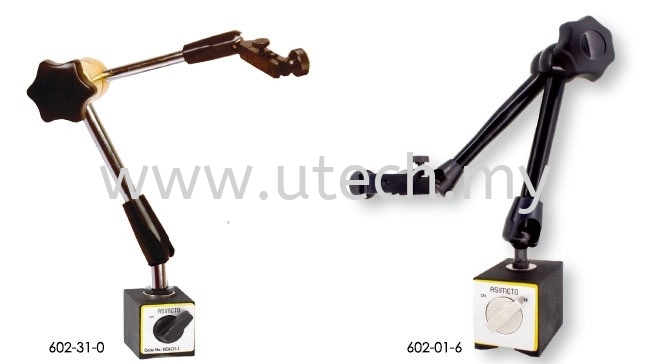

Articulating Arm Magnetic Bases
Series-602

FEATURES

• Dial gauges can be held by the 3/8” or 8mm diameter stem or by the lug backing plate
• Arm has 3 articulating joints that can be locked with the single hand knob
• The rotary knob switches natural magnet on or off
• The precision surfaces and the bottom V are securely fastened to the ferrous work piece or machine table when the rotary knob is in the on position

Magnetic Power	Base (L x W x H)	Arm (L1)	Arm (L2)	Arm (L3)	Arm (L)	Dia. of Hole	Slot	Code No.
80 kgf	60x50x55mm	132mm	120mm	51mm	345mm	Φ3/8” Φ8mm	6.5mm	602-31-0
100 kgf	73x50x55mm	140mm	136mm	67mm	375mm	Φ3/8” Φ8mm	6.5mm	602-01-6
