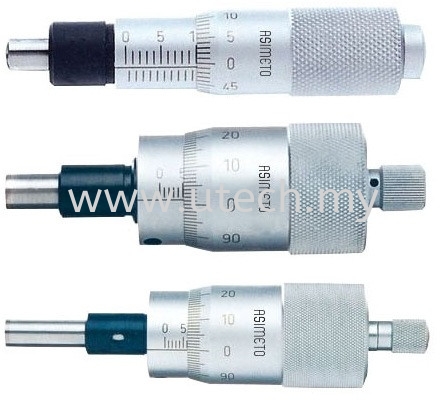

Micrometer Heads
Series 169


Mechanical Models
Range	Accuracy	Graduation	Spindle Dia.	Spindle Lock	Measuring Face	Clamp Nut	Code No.
0-15mm	0.004mm	0.01mm	Φ5mm	W/O	Flat	W/O	169-15-0
0-15mm	0.004mm	0.01mm	Φ5mm	W/O	Spherical	W/O	169-15-2
0-15mm	0.004mm	0.01mm	Φ5mm	W/O	Flat	With	169-15-4
0-15mm	0.004mm	0.01mm	Φ5mm	W/O	Spherical	With	169-15-6
0-15mm	0.004mm	0.01mm	Φ5mm	With	Flat	W/O	169-25-0
0-15mm	0.004mm	0.01mm	Φ5mm	With	Spherical	W/O	169-25-2
0-15mm	0.004mm	0.01mm	Φ5mm	With	Flat	With	169-25-4
0-15mm	0.004mm	0.01mm	Φ5mm	With	Spherical	With	169-25-6
0-15mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	W/O	169-35-0
0-15mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	W/O	169-35-2
0-15mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	With	169-35-4
0-15mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	With	169-35-6
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	W/O	169-21-0
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	W/O	169-21-2
0-25mm	0.004mm	0.01mm	Φ6.5mm	W/O	Carbide & Flat	W/O	169-31-0
0-25mm	0.004mm	0.01mm	Φ6.5mm	W/O	Carbide & Spherical	W/O	169-32-0
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Flat	W/O	169-31-2
0-25mm	0.004mm	0.01mm	Φ8mm	W/O	Carbide & Spherical	W/O	169-32-2
0-25mm	0.004mm	0.002mm	Φ6.5mm	W/O	Carbide & Flat	W/O	169-31-4
0-25mm	0.004mm	0.002mm	Φ6.5mm	W/O	Carbide & Spherical	W/O	169-32-4
0-25mm	0.004mm	0.002mm	Φ8mm	W/O	Carbide & Flat	W/O	169-31-6
0-25mm	0.004mm	0.002mm	Φ8mm	W/O	Carbide & Spherical	W/O	169-32-6
